Right-Hand Drive Is Not a Mirror Image

Author: EVSnug Release time: 2026-08-26 14:00:46 View number: 76

A common assumption: a right-hand-drive car is a left-hand-drive car reflected. Move the wheel across, mirror everything, done.

Close enough for a brochure photo. Wrong enough to ruin a mat.

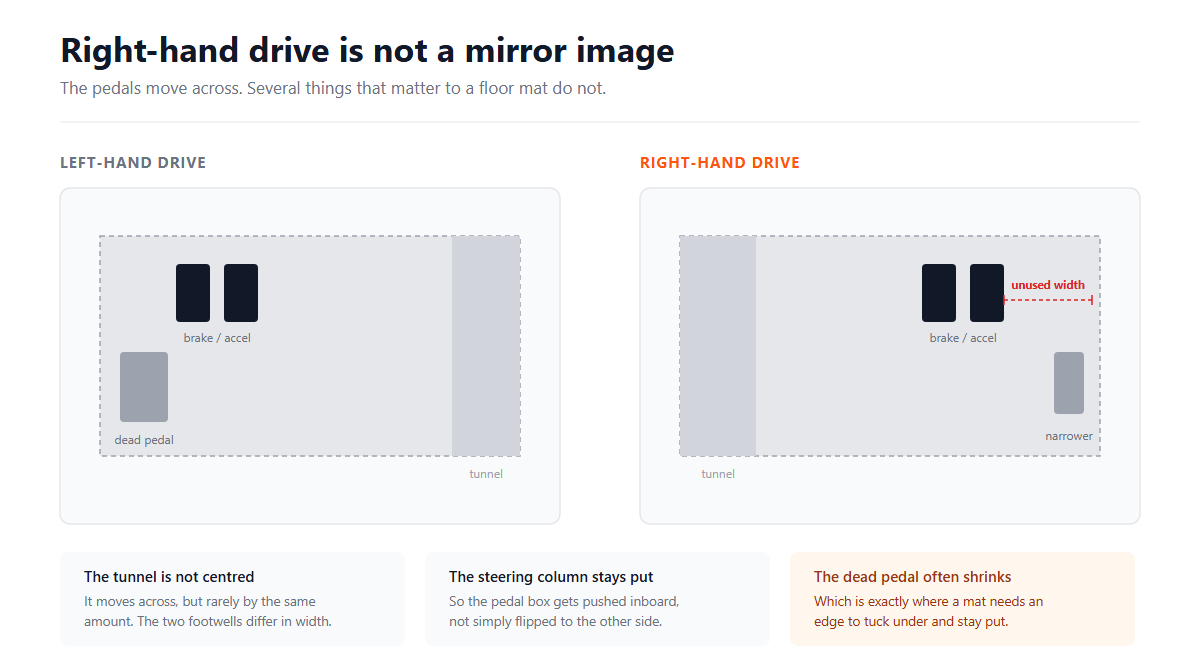

Diagram comparing left-hand-drive and right-hand-drive footwells, showing different pedal box position and dead pedal width
Both sides have two pedals. The difference is where the pedal box sits and how much room is left beside it.

Start with the pedals

An electric car has two pedals, either side of the world. There is no clutch to account for. So pedal count is not the difference, and anyone telling you otherwise is describing a petrol car.

The difference is position. When a platform is designed left-hand-drive first, the pedal box is packaged around the steering column, the brake booster and the wiring on that side. Moving it across is not free: the column takes a new path, the booster is often relocated, and the pedal box lands slightly differently relative to the tunnel.

The dead pedal is the giveaway

The footrest sitting left of the pedals in a left-hand-drive car becomes a footrest sitting right of the pedals in right-hand-drive, and it is usually not the same size.

The tunnel does not move. So on one side the driver gets the full width between sill and tunnel; on the other, the pedal box eats into it. Manufacturers absorb that with a narrower footrest, a re-angled one, or none at all.

For a mat, that is a change in shape, not a change in position. No amount of flipping fixes it.

What else shifts

DetailEffect on the mat
Steering column angleDifferent pass-through point, different clearance at the top edge
Console asymmetryCupholders, bins and armrests are rarely mirrored exactly
Release leversBonnet and charge-port pulls land in different spots to work around
Anchor pointsThey follow the carpet and the seat frame, not the steering wheel

What it means when you order

Driver and passenger mats are not interchangeable. They are not interchangeable in a left-hand-drive car either, but on a right-hand-drive car a wrong-side mat is more obvious, because of that footrest.

"Fits the Model X" is not the same claim as "fits your right-hand-drive Model X". Australia, New Zealand, the UK, Japan, South Africa and Thailand all drive on the left. Most Chinese-built EVs are engineered left-hand-drive first, and the right-hand-drive version is a conversion, not a reflection.

Three things to check

Does the listing say RHD? If it does not say so anywhere, assume it was not asked.

Which side are the pedals on in the photo? Product photography is often shot once, in whichever market built the sample.

Is there a footrest cutout, and is it on the correct side? This is the single fastest visual check.

Related reading

On why a generic shape cannot solve this, see universal or model-specific. On reading what a listing actually promises, see the words on a car mat listing. On the other variable that changes the same footwell, see how to check your build year.
